Concrete Mixer

Buy from our premium range of highly efficient Concrete Mixer units that are commonly used on construction sites for the production of cement mix in large volumes. These machines are designed by our team of skilled engineers by using top-grade materials and advanced fuel-powered drives that lead to high robustness and working efficiency. The whole unit is mounted on a sturdy platform fixed with rubber wheels to easily move them to different locations by simply mounting them at the rear of self-propelling vehicles. Concrete Mixer manufactured by us can be delivered to our clients as per their demands with an assurance of fast and safe delivery.
ELEMENTO 3.0
ELEMENTO 3.0 ELEMENTO 3.0
Get a Price/Quote

ELEMENTO 3.0

Request To Call Back


Concrete Mixture 300 Ltrs Elemnto 3.0

Mixer Unmixed capacity      : 300 Ltrs

Mixer Mixed Capacity          : 200 Ltrs

Power (Petrol Engine)          : 5 HP (Petrol Engine)/ 3 HP Electric Motor single phase

Mixing Drum Speed              : 22-24 RPM

Transmission                         : Belt Drive

Mixing Drum                         : Dishend type Fabricated with Gearing

Towing Speed (Max.)            : 05 Km/Hr

Output/Hour                         : 4 to 5 cu.mtr/hr

Wheels                                   : Pneumatic or MS Wheels with towing bar

Send Inquiry
Hand Fed Concrete Mixer
Get a Price/Quote

Hand Fed Concrete Mixer

Request To Call Back
The Hand Fed Concrete Mixer is a powered device that mixes cement with water and aggregate, to make concrete. The mixer is a batch plant attached on a chassis usually a truck and carries unmixed material (sand, cement, coarse aggregates, water and various other materials or chemicals needed for more specialty applications) to a job site and mixed on a intermittent basis as required for fresh maximum strength concrete. The provided Hand Fed Concrete Mixer is very efficient and made for use in a number of industries as per the need.
Send Inquiry
MS Hand Fed Concrete Mixer
Get a Price/Quote

MS Hand Fed Concrete Mixer

Request To Call Back

Product details

Material of Construction

Stainless steel

Surface Treatment

Galvanized

Brand

Esquire

Automatic Grade

Automatic

Power Source

Diesel Engine

Portable (Y/N)

Yes

 Specification

Technical Data

7/5 Cubic ft

10/7 Cubic ft

14/10 Cubic ft

Capacity ( Unmixed )

200 Liters

300 Liters

400 Liters

Capacity (Mixed )

150 Liters

200 Liters

300 Liters

Power (Diesel Engine)

6 HP

6 HP

6 HP

Power (Electrical Motor)

3 HP

5 HP

5 HP

Output

3.5 Cubic m/hr

4.5 Cubic m/hr

5.5 Cubic m/hr
Send Inquiry

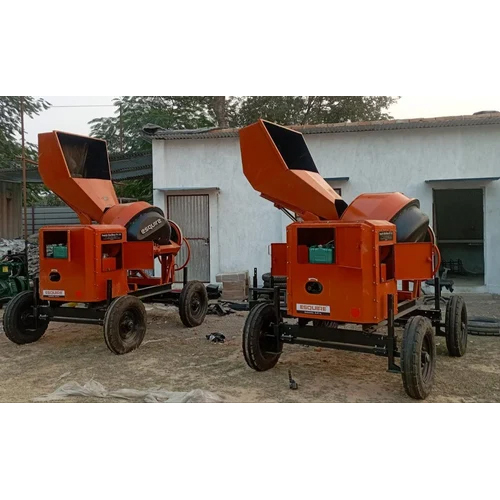

Hydraulic Concrete Mixer
Get a Price/Quote

Hydraulic Concrete Mixer

Request To Call Back

Product details

Calibrated Water Tank

Optional

Capacity (Mixed )

200 Liters

Capacity (Unmixed)

300 Liters

Dual Drive Arrangement

Optional

Output

8 Cubic m/hr

Prime Motor (Diesel Engine)

6 HP

Prime Motor (Electrical Motor)

5 HP

Skip (Loading Hopper)

Hydraulic Operated

Technical Data

10/7 Cubic ft

Brand

Esquire

Automatic Grade

Automatic



Send Inquiry

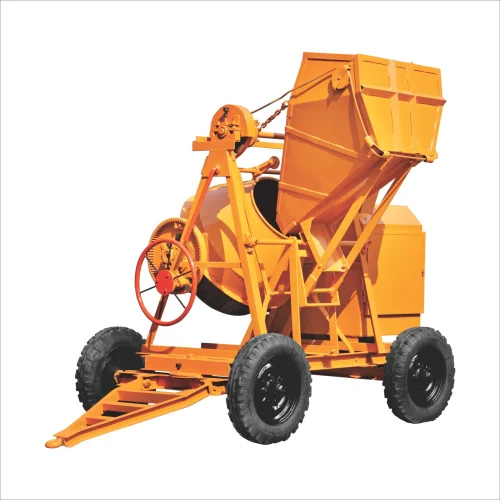

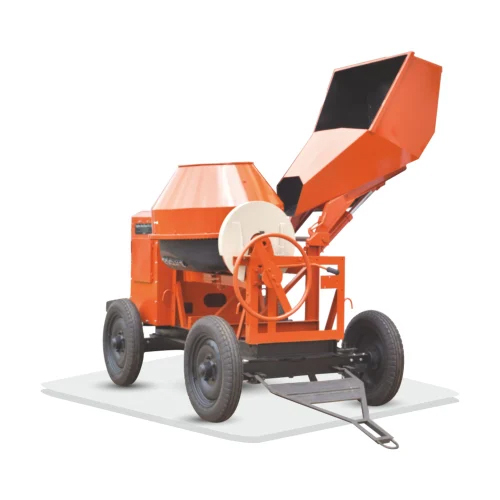

Hydraulic Hopper Concrete Mixer
Get a Price/Quote

Hydraulic Hopper Concrete Mixer

Request To Call Back

Hydraulic Hopper Concrete Mixer is utilized for blending the concrete, aggregates and sand so as to make concrete of the essential evaluation. It is utilized to mixes aggregate, cement and water so as to produce the concrete in a uniform manner. It is suited for the construction companies. Hydraulic Hopper Concrete Mixer is needed to combine cement, sand and gravel and materials. This mixer is made to create high-quality concrete and make a solid base for several structures.

Product details

Calibrated Water Tank

Optional

Capacity (Mixed )

200 Liters

Capacity (Unmixed)

300 Liters

Dual Drive Arrangement

Optional

Output

8 Cubic m/hr

Prime Motor (Diesel Engine)

6 HP

Prime Motor (Electrical Motor)

5 HP

Skip (Loading Hopper)

Hydraulic Operated

Technical Data

10/7 Cubic ft

Brand

Esquire

Automatic Grade

Automatic



Send Inquiry
Mechanical Concrete Mixer
Get a Price/Quote

Mechanical Concrete Mixer

Request To Call Back

Product details

Mixing Drum cone

3.15mm (10 SWG) thick steel sheet

Type

Movable

Automation Grade

Automatic

Chassis Material

Cast Iron

Brand

Esquire



Send Inquiry
Reversible Mini Concrete Mixer Machine
Get a Price/Quote

Reversible Mini Concrete Mixer Machine

Request To Call Back
Send Inquiry

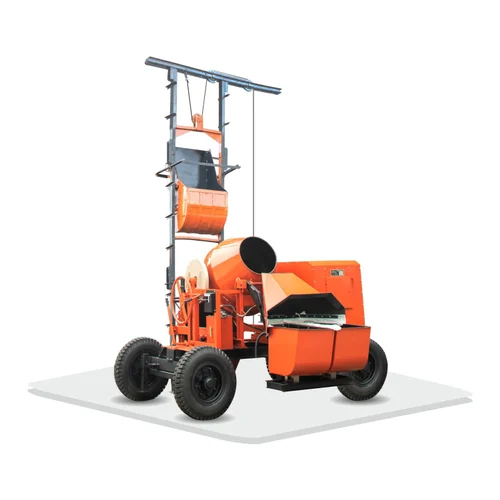

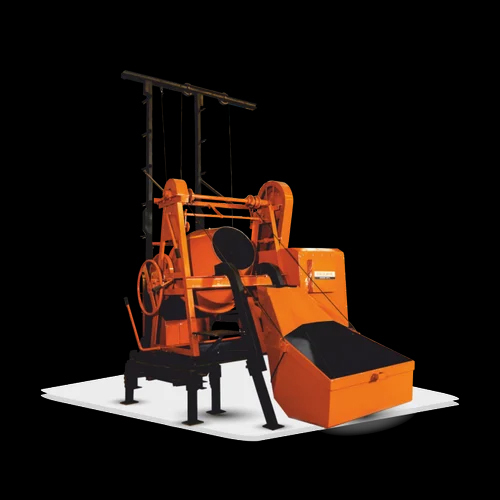

Hydraulic Concrete Mixer Cum Hoist
Get a Price/Quote

Hydraulic Concrete Mixer Cum Hoist

Request To Call Back

Product details

Calibrated Water Tank

Optional

Capacity (Mixed )

200 Liters

Capacity (Unmixed)

300 Liters

Dual Drive Arrangement

Optional

Output

8 Cubic m/hr

Prime Motor (Diesel Engine)

6 HP

Prime Motor (Electrical Motor)

5 HP

Skip (Loading Hopper)

Hydraulic Operated

Technical Data

10/7 Cubic ft

Brand

Esquire

Automatic Grade

Automatic



Send Inquiry
Energy Effcient Concrete Mixer
Get a Price/Quote

Energy Effcient Concrete Mixer

Request To Call Back
Our company offers premium-class Energy Efficient Concrete Mixer that can be used in medium to large-scale construction applications for the production of cementitious mixtures. This machine is installed with a high-performance diesel-powered drive unit to deliver mechanical power for the continuous rotation of the mixing chamber. The base supporting frame of this machine is fixed with wheels and mount levers to move it easily without the need for the labor force. The mixing chamber of the offeredEnergy Efficient Concrete Mixercan be easily tilted with the help of a rotating handwheel.
Send Inquiry
